Product Description:

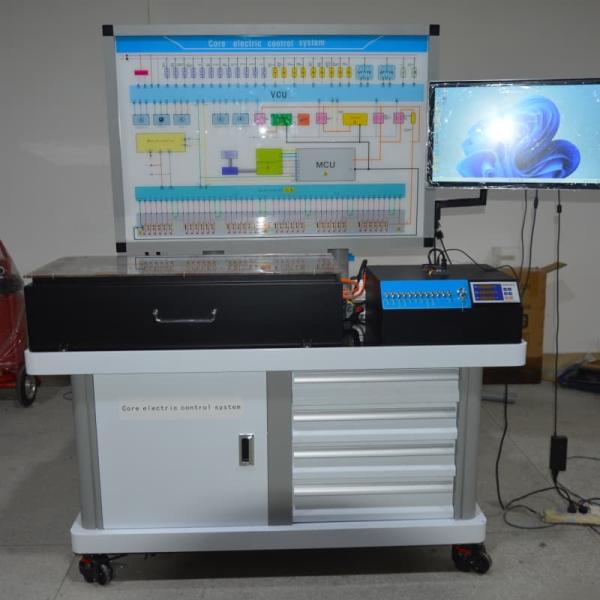

A custom-developed device designed to simulate the control systems of new energy vehicles, applied in the research, teaching, and practice of new energy electric vehicles.

This bench integrates the three core control systems of new energy vehicles: the Vehicle Control Unit (VCU), Motor Control Unit (MCU), and Battery Management System (BMS). It provides hardware schematics and software source code for the VCU, MCU, and BMS, enabling students or engineers to modify the code and perform secondary development and verification based on the provided hardware and software platform.

The bench includes a motor dynamometer platform capable of operating with four-phase motor lines. Equipped with a dynamic torque sensor, it can measure key parameters such as motor torque, speed, power, and efficiency, offering full functionality equivalent to a motor dynamometer.

The bench is equipped with a 36-cell lithium iron phosphate battery and a self-developed BMS, capable of monitoring battery voltage, temperature, and current.

The VCU, MCU, and BMS on the bench are developed using the industry-leading V-shaped development process, with algorithms modeled in MATLAB and auto-generated into code, meeting the automotive industry's requirements for rapid development and iteration.

In summary, this bench serves as a comprehensive verification and testing platform for developing the three core electric systems of new energy vehicles. It significantly enhances engineers' development capabilities and facilitates experiments involving the coordinated tuning of the three systems.

Our products are suitable for Automotive technical schools,Government procurement,Diagnostic equipment and workshop equipment manufacturers.Emphasize the excellent quality of products to ensure the durability and reliability of teaching equipment to meet long-term teaching needs.

Features:

• Product Name: Electric Vehicle Trainer
• Package: Wooden Box
• Customizable: OEM
• Type: Training Platform
• Training Platform: Beginner To Advanced
• Function: Teaching

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for it.

This equipment (Model: ZC-QCG164A) is a high-quality electric vehicle training device suitable for various occasions and scenarios. Its versatility makes it a valuable tool for a wide range of users, from beginners to advanced learners. Here are some of the key application areas:

1. Technical Schools: The Trainer is ideal for technical schools looking to provide hands-on training in electric vehicle technology. Students can gain practical experience and skills that are in high demand in the automotive industry.

2. Training Centers: Training centers can use the Trainer to offer specialized courses in electric vehicle maintenance and repair. The customizable nature of the trainer allows for tailored training programs to meet specific learning objectives.

3. Workshops: Automotive workshops can benefit from incorporating the Electric Vehicle Trainer into their training curriculum. It serves as a practical tool for technicians to enhance their understanding of electric vehicle systems and components.

4. College Programs: Colleges and universities with automotive engineering programs can enhance their curriculum with the Electric Vehicle Trainer. Students can explore cutting-edge technology and gain hands-on experience with electric vehicles.

With its durable steel construction and certification for ISO9001/CE, the Trainer guarantees reliability and safety in training environments. The minimum order quantity of 1 set and negotiable pricing make it accessible for various educational institutions. Each trainer is packaged in a wooden box for secure delivery within 15-25 work days.

Payment terms are flexible, with options for T/T transactions. The Trainer is customizable with OEM options available to tailor the training platform to specific needs. Zhong Cai, the brand behind the trainer, ensures a supply ability of 1000 sets to meet the demand for quality electric vehicle training devices.
