1. Product Overview & Training Objectives

This Automotive Educational Vocational Equipment serves as a comprehensive Model for CAN Bus System Training, designed to achieve five core learning outcomes:

1. Master CAN Bus Architecture: Understand the structural composition and working principles of vehicle CAN data transmission networks
2. Signal Measurement Skills: Learn proper techniques for CAN network signal detection and analysis
3. Fault Diagnosis Training: Develop systematic troubleshooting capabilities through simulated CAN system failures
4. Diagnostic Tool Operation: Gain proficiency in using scan tools to read/clear DTCs and interpret data streams
5. Safety Competency: Cultivate safe working practices when handling automotive electrical systems

2. Core Configuration & Technical Specifications

Key Component Specifications

Technical Highlights:

• Genuine Volkswagen Passat CAN network components
• AC220V to DC12V conversion with safety protection
• Expandable for LIN/MOST network training

3. Educational Applications & Competency Development

This Vehicle Training System enables:

Hands-on Skill Development:

• 〽️ Signal waveform measurement at test points
• 〽️ Cross-system diagnosis (Engine+ABS+Comfort)
• 〽️ Complete diagnostic workflow practice

Safety-Focused Training:

• ✔️ Proper circuit measurement procedures
• ✔️ Correct tool handling techniques
• ✔️ Electrical hazard prevention

Assessment-Ready Features:

• ✅ Remote fault injection for competency testing
• ✅ Standardized OBD-II diagnostic practice
• ✅ Real-world troubleshooting scenarios

The equipment includes training manuals, wiring schematics, and basic consumables, making it ideal for:

• Automotive vocational certification programs
• Technician skill upgrades
• Engineering college labs

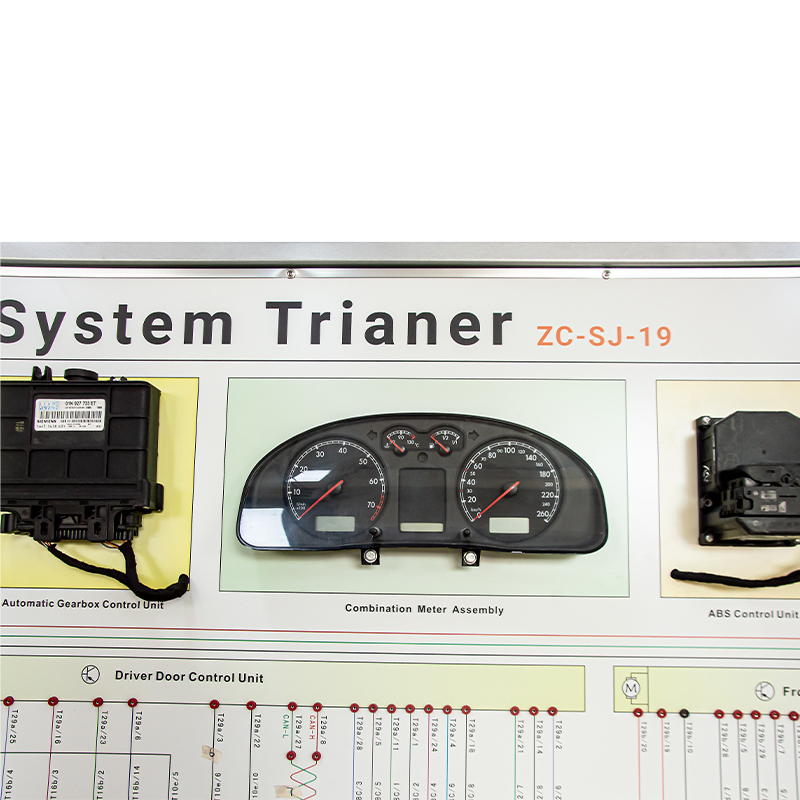

4,Product detail diagram
